ORIENT 6013

Hot
Orient
METAL ARC 6013
CROWN WELD 6013
MILD STEEL ELECTRODES

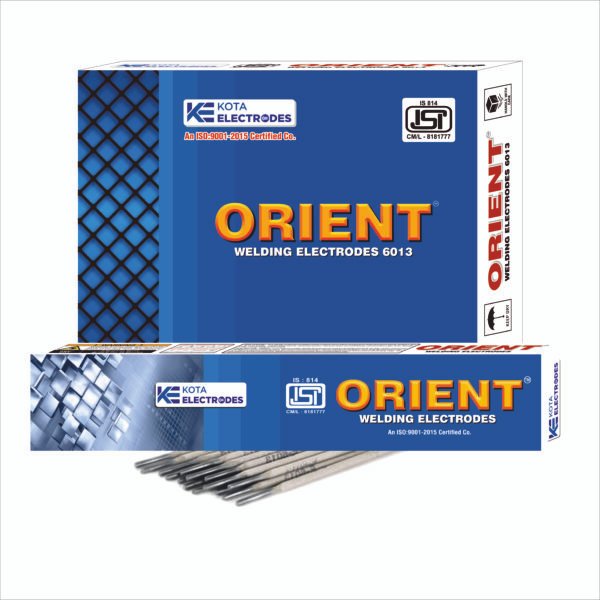

 ORIENT 6013
APPROVALS:

BUREAU OF INDIAN STANDARDS (ISI MARKED)

CLASSIFICATION & COADING:
IS 814:2004 : ER 4211
AWS 5.1 : E6013
DESCRIPTION:

ORIENT 6013 is a medium-heavy, rutile-coated, general-purpose mild steel welding electrode. specially manufactured for RADIOGRAPHIC quality weld. Low splatter, adequate penetration, easy slag removal, and finely rippled, smooth beads are the special features of Orient electrodes. Mechanical properties are up to mark and consistent. easy to operate on an AC as well as DC welding power source in all conventional welding positions.

APPLICATIONS:

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Heavy Structural works, Heavy Machine Base & Machinery Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.

CHEMICAL ANALYSIS OF ALL WELD METAL:
Carbon%Manganese%Silicon%Sulphur%Phosphorous%
0.12 max0.38-0.650.35 max0.04 max0.04 max
MECHANICAL PROPERTIES OF ALL WELD METAL:
Yield strengthUltimate Tensile Strength Elongation% CVN Impact at 0°C
330 N/mm2 min410-540 N /mm2 22-28%50-70 joules
CURRENT & CONDITIONS : USE AC 50 (OCV) OR DC (+/ -)
SIZE (mm)2.50x350 3.15x350 3.15x450 4.00x350 4.00x450 5.00x450
Amps60-90 100-140 100-140 140-200 140-200 180-240
RECOMMENDATIONS:

To obtain the best result use welding current with in the recommended range, Store the electrodes in Dry Place.
