WELD METAL 6013

WELD METAL-S 6013
MILD STEEL ELECTRODES
 WELD METAL 6013
Hot

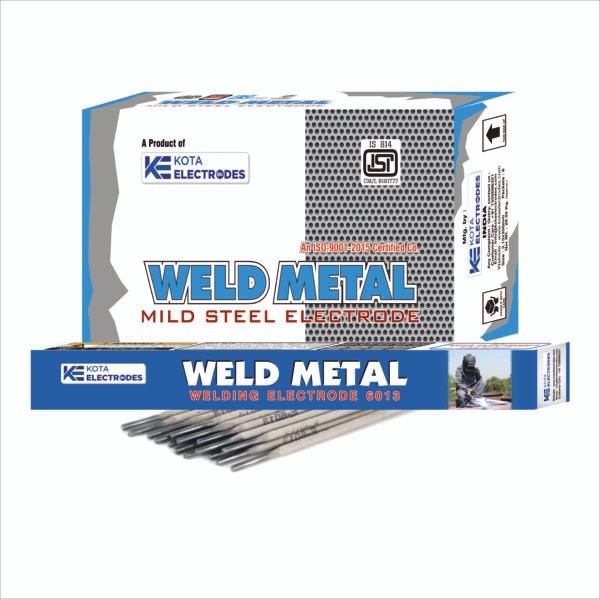

Weldmetal 6013
APPROVALS:

BUREAU VERITAS
BUREAU OF INDIAN STANDARDS (ISI MARKED)
INDIAN BOILERS REGULATION-1950 (IBR)
LLOYD’S & SHIPPING (LR), LONDON
NATIONAL TEST HOUSE (NTH)

CLASSIFICATION & COADING:
IS 814:2004 : ER 4211X
AWS 5.1 : E6013
DESCRIPTION:

WELD METAL 6013 is a medium-heavy, rutile-coated, general-purpose mild steel welding electrode specially manufactured for RADIOGRAPHIC quality welds. Low spatter, adequate penetration, easy slag removal (self-pealing slag), and finely rippled, smooth beads are the special features of Weld Metal E6013 electrodes. Mechanical properties are up to the mark and consistent. It is easy to operate on an AC and a DC welding power source in all conventional welding positions.

APPLICATIONS:

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Structural works, Machine Base & Machinery
Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works and mild steel furniture etc.

CHEMICAL ANALYSIS OF ALL WELD METAL:
Carbon%Manganese%Silicon%Sulphur%Phosphorous%
0.12 max0.38-0.620.35 max0.04 max0.04 max
MECHANICAL PROPERTIES OF ALL WELD METAL:
Yield strengthUltimate Tensile StrengthElongation%CVN Impact at - 0°C
330 N/mm2 (Min)410-540 N /mm222-28%50-70 joules
CURRENT & CONDITIONS : USE AC ( 50 OCV )OR DC ( +/ - )
SIZE (mm)2.50x3503.15x3503.15x4504.00x3504.00x4505.00x450
Amps60-90100-140100-140140-200140-200180-240
RECOMMENDATIONS:

To obtain the best result use welding current within the recommended range, Store the electrodes in Dry Place.
